Introduction to Load Takedown

A quick primer on what load takedown is, why it matters, and how engineers use it.

---

Before diving into worked examples or detailed calculations, it helps to step back and ask: what exactly is load takedown, and why do engineers use it?

---

What is load takedown?

Load takedown is the process of tracing how gravity loads move through a structure — from roof and floors, into beams or walls, and finally into the foundations. This can be done to calculate loads to any level in a structure but is typically done to complete foundation load calculations.

Think of it as following the chain of responsibility:

1. Floors → Beams
2. Beams → Columns/Walls
3. Columns/Walls → Foundations
4. Foundations → Soil

---

Why does it matter?

• Quick checks → sanity-check your design before building a full analysis model.
• Foundation sizing → estimate whether pad, strip, or piled foundations are likely.
• Communication → simple sketches make it easier to explain design intent.

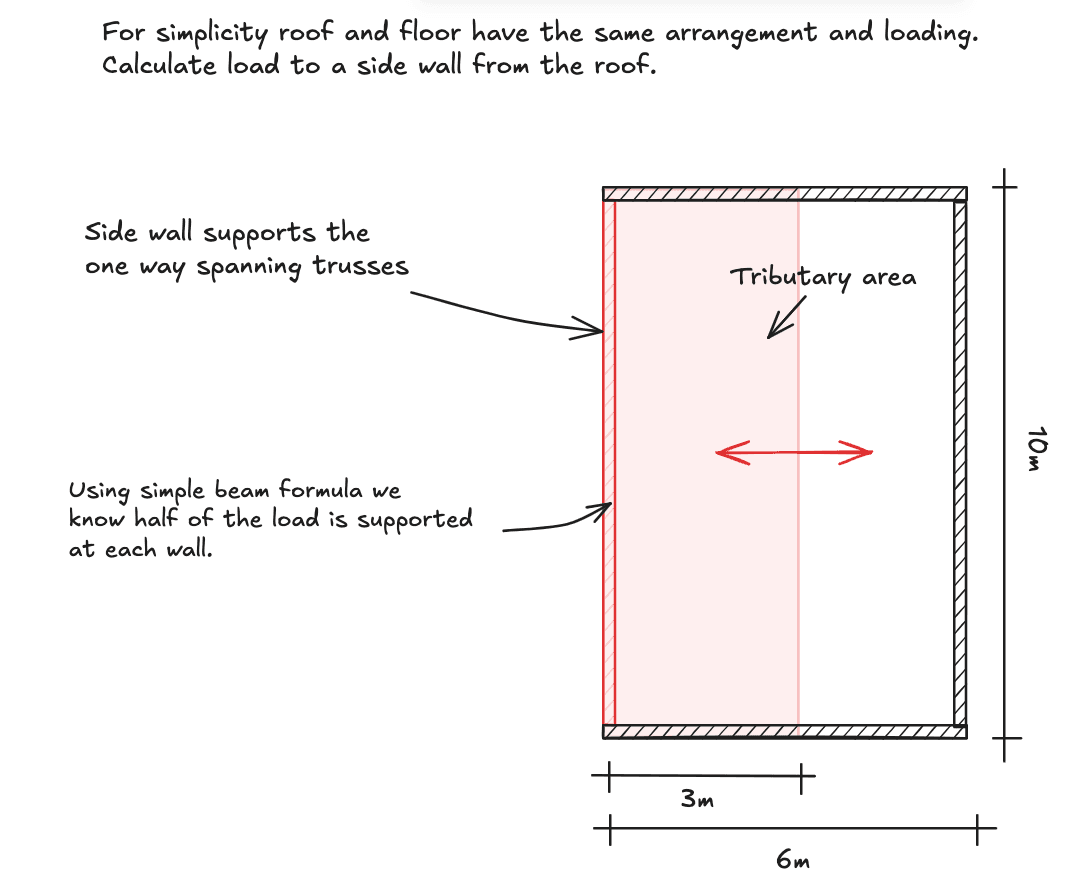

Even in the age of FEM and powerful software, being able to sketch tributary areas and do a quick takedown by hand is a core skill for every structural engineer.

---

What’s next?

If you want to see how this works in practice, check out:

• Manual Load Takedown with Pen and Paper →
• Load Takedown Worked Example →
• Free Load Takedown Spreadsheet →

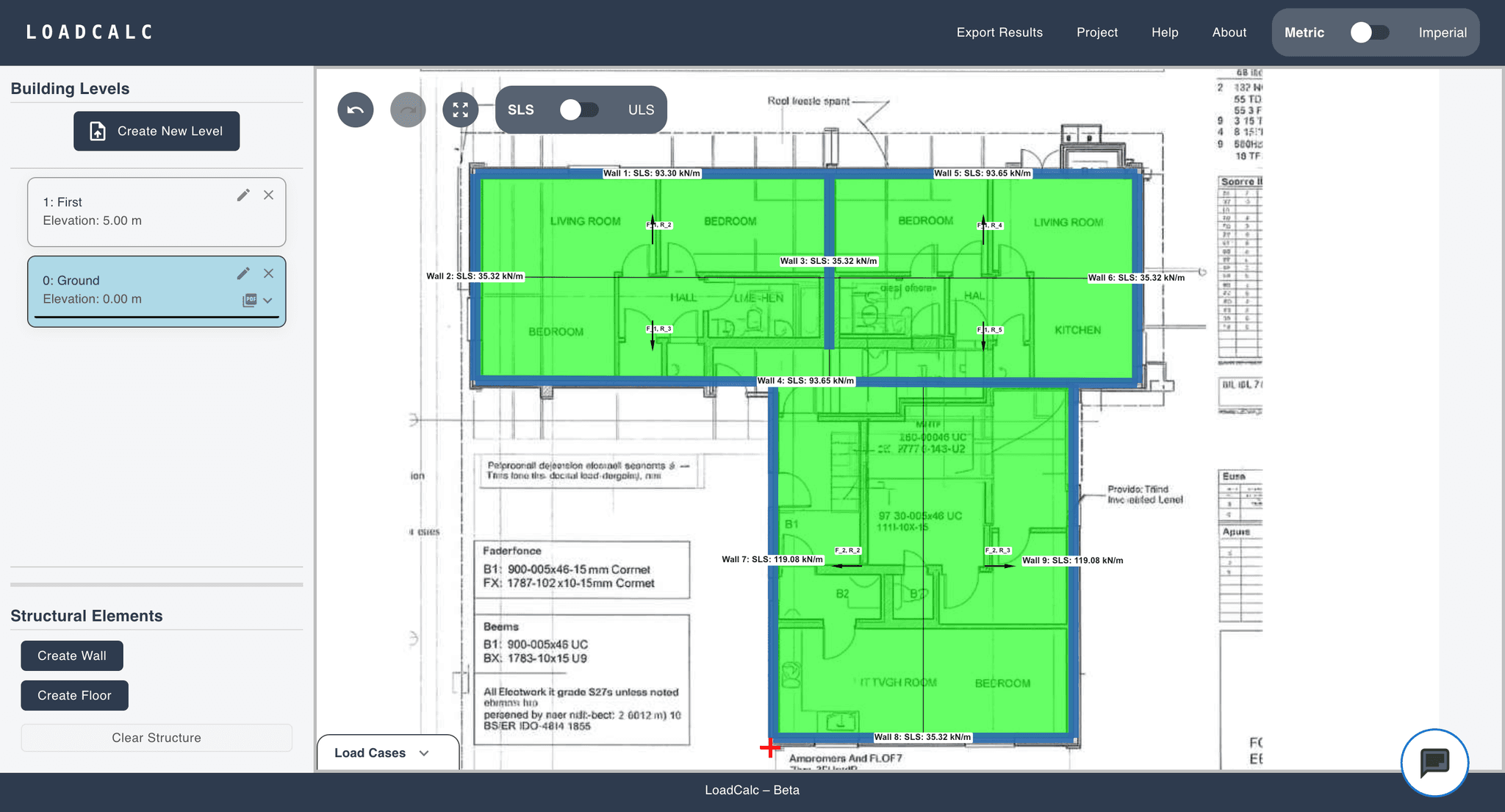

Or, if you’re tired of repeating the same sketches and calculations, try our lightweight web app:

LoadTakedown →

---

Load takedown is the starting point of every foundation design. Keep it simple, keep it consistent, and always know where your loads are going.
